geom::ComplexWithFreeVertex< QF, N, T > Class Template Reference

A local simplicial complex with a free node at the center. More...

#include <ComplexWithFreeVertex.h>

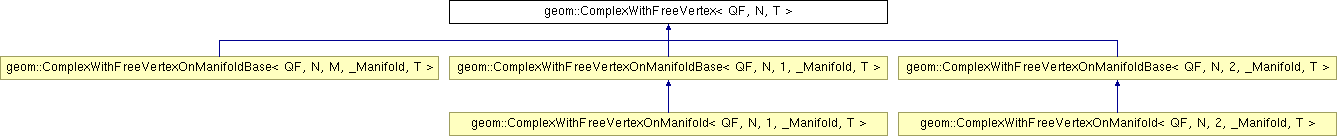

Inheritance diagram for geom::ComplexWithFreeVertex< QF, N, T >:

List of all members.

Public Types
typedef T	Number
	The number type.
typedef SWFV::Vertex	Vertex
	A vertex.
typedef SWFV::Face	Face
	A face of the simplex.
Public Member Functions
Constructors etc.
	ComplexWithFreeVertex ()
	Default constructor. Un-initialized memory.
template<typename FaceIterator>
	ComplexWithFreeVertex (FaceIterator beginning, FaceIterator end)
	Construct from the fixed faces.
	~ComplexWithFreeVertex ()
	Trivial destructor.
Accessors.
Vertex	getFreeVertex () const
	Return the free vertex.
Manipulators.
template<typename FaceIterator>
void	set (FaceIterator begin, FaceIterator end)
	Set the fixed vertices.
Mathematical functions
void	computeBBox (const Vertex &v, BBox< N, T > *bb)
	Calculate the bounding box for the complex.
Number	computeContent (const Vertex &v)
	Return the content for the given free node.
void	computeGradientOfContent (const Vertex &v, Vertex *gradient)
	Calculate the gradient of the content for the given free node.
Number	computeNorm2 (const Vertex &v)
	Return the 2-norm of the quality metric for the given free node.
void	computeGradientOfNorm2 (const Vertex &v, Vertex *gradient)
	Calculate the gradient of the 2-norm of the quality metric for the given free node.
Number	computeNorm2Modified (const Vertex &v)
	Return the 2-norm of the modified quality metric for the given free node.
void	computeGradientOfNorm2Modified (const Vertex &v, Vertex *gradient)
	Calculate the gradient of the 2-norm of the modified quality metric for the given free node.
Protected Member Functions
void	set (const Vertex &v)
	Set the free vertex in the simplices.

---

Detailed Description

template<template< int, typename > class QF, int N, typename T = double>
class geom::ComplexWithFreeVertex< QF, N, T >

A local simplicial complex with a free node at the center.

Parameters:

	QF	is the quality functor for the simplices.
	N	is the dimension.
	T	is the number type. By default it is double.

This class implements the complex of simplices that surround a free node. It provides functions to aid in the optimization of the location of this node. The faces in the complex that are not incident to the free node are fixed. You can set the fixed faces with the ComplexWithFreeVertex(FaceIterator begin,FaceIterator end) constructor or with set(FaceIterator begin,FaceIterator end). You can evaluate various quantities as a function of the position of the free node:

• computeBBox(const Vertex& v,BBox<N,T>* bb) calculates the bounding box for the complex.
• computeContent(const Vertex& v) returns the content of the complex.
• computeGradientOfContent(const Vertex& v,Vertex* gradient) calculates the gradient of the content.
• computeNorm2(const Vertex& v) returns the 2-norm of the quality metric.
• computeGradientOfNorm2(const Vertex& v,Vertex* gradient) calculates the gradient of the 2-norm of the quality metric.
• computeNorm2Modified(const Vertex& v) returns the 2-norm of the modified quality metric.
• computeGradientOfNorm2Modified(const Vertex& v,Vertex* gradient) calculates the gradient of the 2-norm of the modified quality metric.

---

Member Function Documentation

template<template< int, typename > class QF, int N, typename T = double>

void geom::ComplexWithFreeVertex< QF, N, T >::set

(

const Vertex &

v

)

[protected]

Set the free vertex in the simplices.

For effeciency, it checks if the free vertex has already been set to v.

---

The documentation for this class was generated from the following file:

• ComplexWithFreeVertex.h

---
