Twisted Cylinder Example

We start with a mesh of a cylinder. It has unit height and radius 0.5. The edges of the tetrahedra have lengths close to 0.1. In the figures below, we show the modified condition number of the elements.

  cp ../../../data/geom/mesh/33/cylinder_0.5_1_0.1.txt mesh.txt

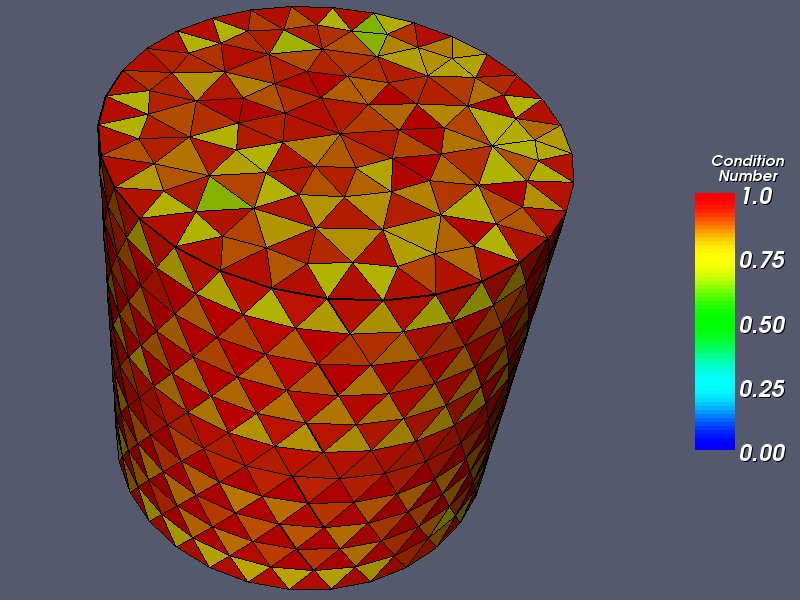

The initial mesh of the cylinder.

For the boundary of the cylinder, we use a mesh that has triangle edge lengths close to 0.05. We define any dihedral angle that deviates more than 0.5 from pi to be an edge feature.

  cp ../../../data/geom/mesh/32/cylinder_0.5_1_0.05.txt boundary.txt

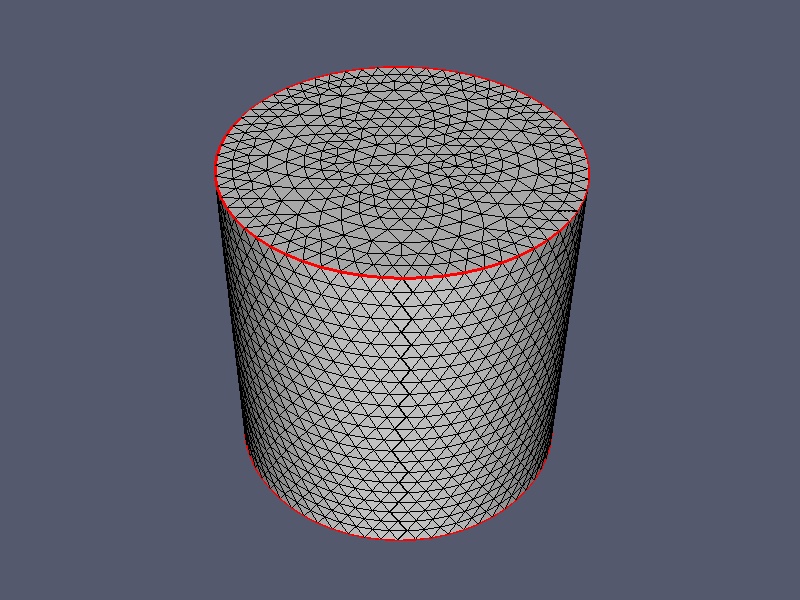

The boundary mesh and the edge features.

Next we twist the mesh along its axis of symmetry by an angle of pi.

  python.exe ../../../data/geom/mesh/utilities/vertices_map.py twist mesh.txt twisted.txt

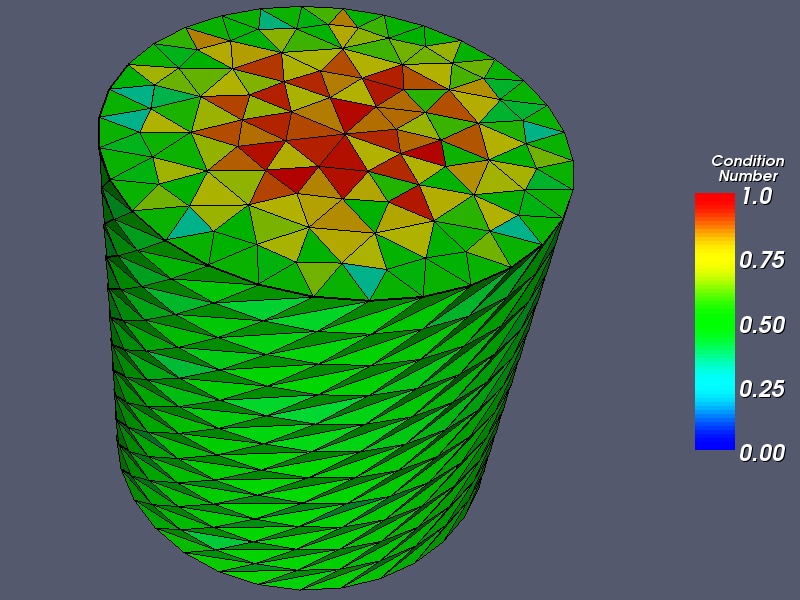

The twisted mesh.

First we will try optimizing the twisted mesh by treating the boundary as a surface. That is, vertices are only constrained to remain on the boundary. We apply five sweeps of geometric optimization.

  optimization/geomOptBoundaryCondition3.exe -sweeps=5 boundary.txt twisted.txt surfaceOptimized.txt

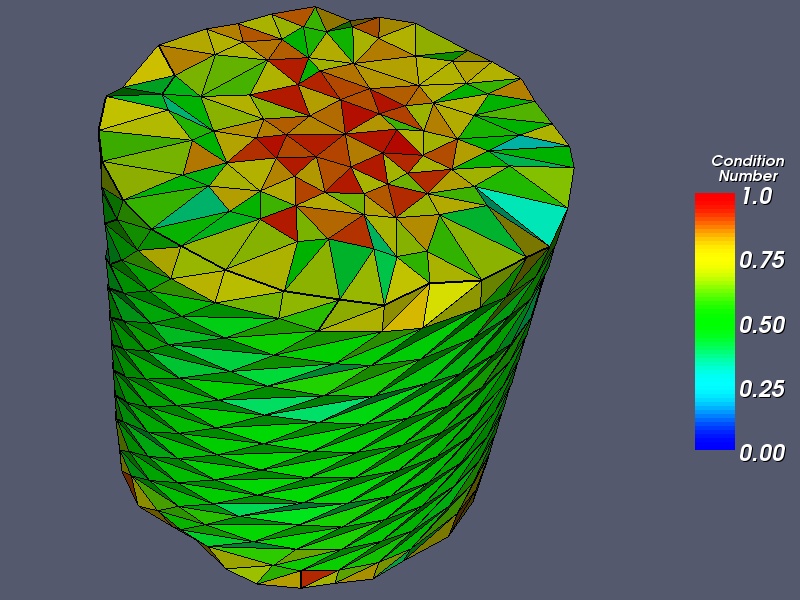

Geometric optimization using the boundary as a surface.

Next we apply topological optimization.

  optimization/topologicalOptimize3.exe -angle=3.15 surfaceOptimized.txt surfaceOptimized.txt

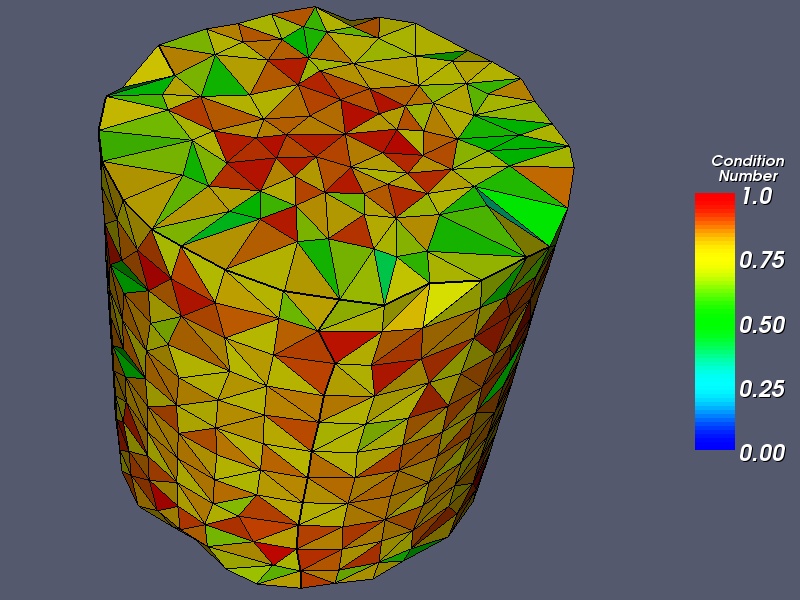

Geometric and topological optimization using the boundary as a surface.

Applying three cycles of geometric and topological optimization yields the mesh below.

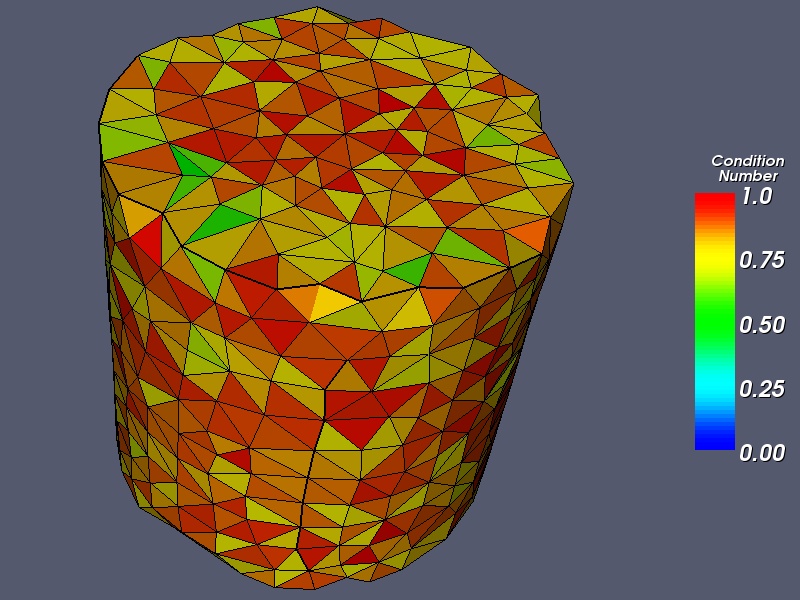

Three cycles of geometric and topological optimization using the boundary as a surface.

Next we will try optimizing the twisted mesh by treating the boundary as a manifold with edge features. That is, vertices on edge features must remain on edge features and vertices on surface features may not cross edge features. We apply five sweeps of geometric optimization.

  optimization/geometricOptimize3.exe -sweeps=5 -boundary=boundary.txt -featureDistance=0.01 -dihedralAngle=0.5 twisted.txt manifoldOptimized.txt

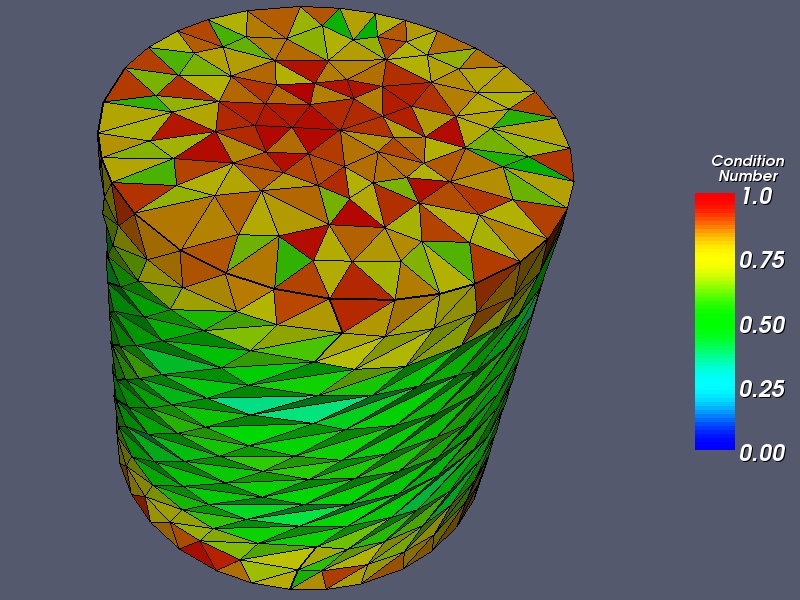

Geometric optimization using the boundary as a manifold with edge features.

Next we apply topological optimization.

  optimization/topologicalOptimize3.exe -manifold=boundary.txt -angle=0.5 manifoldOptimized.txt manifoldOptimized.txt

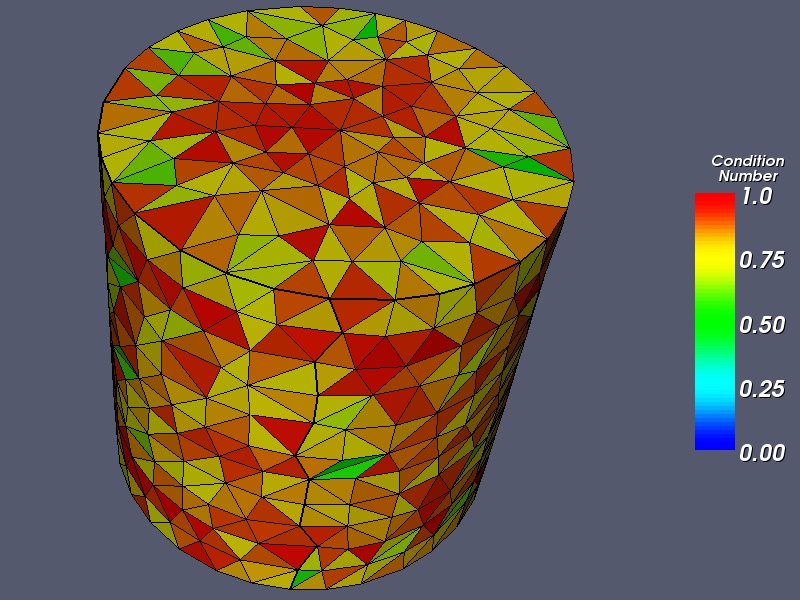

Geometric and topological optimization using the boundary as a manifold with edge features.

Applying three cycles of geometric and topological optimization yields the mesh below.

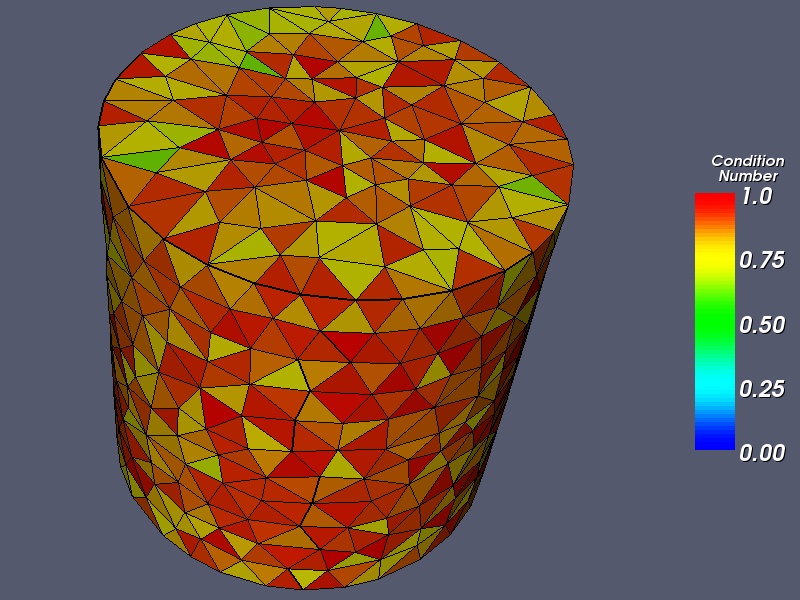

Three cycles of geometric and topological optimization using the boundary as a manifold with edge features.

---
